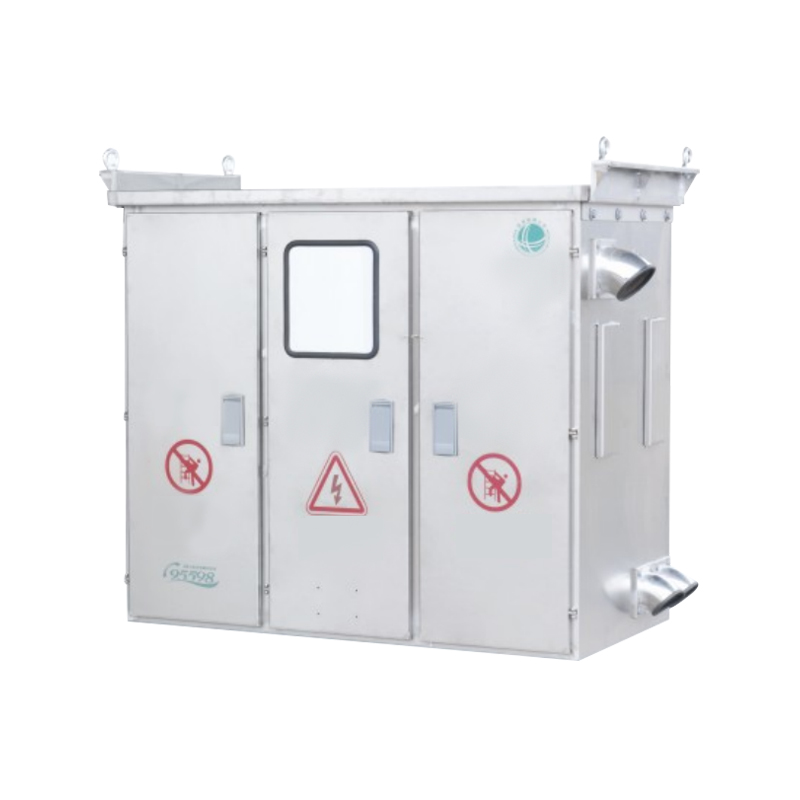

Comprehensive Distribution Box (Compensation, Control, Terminal, Lighting)

Ambient Temperature: -25°C to +40°c.
Relative Air Humidity: Daily average not exceeding 90%, monthly average not exceeding 90%.
Altitude: Not exceeding 2500m.
Installation in places without severe vibration,impact, and corrosive gases.

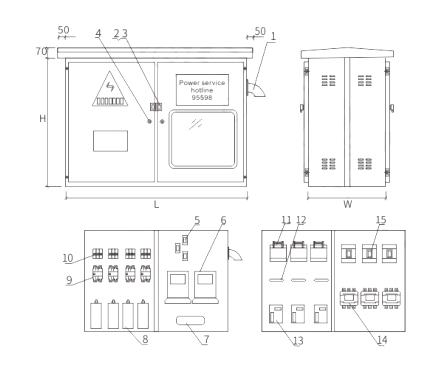

The box structure is divided and horizontal, and the shell is made of 2mm high-quality stainles steel plate through multiple
bending processes (or stainless steel double-layer composite plate with honeycomb structure, with flame retardant, environmental
protection, heat insulation, anti-condensation, and other properties).Special stainless steel welding technology is used, and the
overall strength of the box is high, with a surface as smooth as a mirror and no welding seam traces. The internal installation beam
(plate) is treated with hot-dip galvanizing to ensure no rusting for twenty years.The box has front and rear doors for easy user
operation and maintenance.Each door is equipped with both bright and dark locks, with the bright lock having a rain cover to
prevent blocking and rust.The metering room is fully enclosed with lead sealing.The box has rain and foreign object prevention
conduits on the side, ventilation holes, and cable outlets at the bottom, and ventilation ducts and screens at the top, providing
water resistance,rust prevention, dust prevention, and foreign object prevention. Protection level: IP54.
