Outdoor High Voltage lsolation Switch

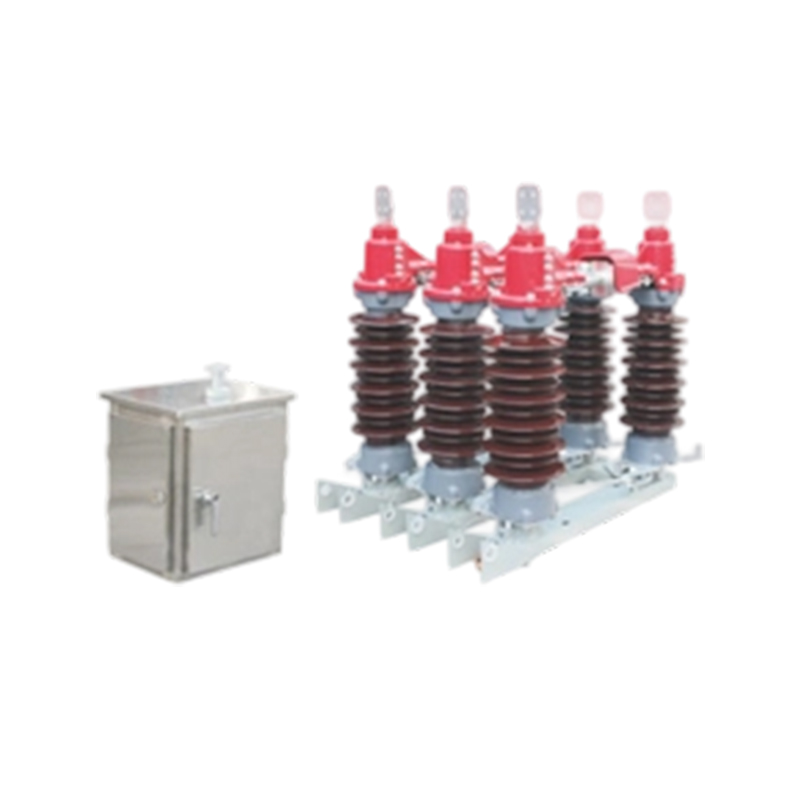

The 35kV turnkey disconnector set comprises the JLGW4-40.5(D)(W) disconnector body, cS11 or cs8-6D manual operatingmechanism, and transmission accessories, among others. it can also be paired with a C6 electric operating mechanism. The 110kVturnkey disconnector set features the JLGW4-126(D)(W) disconnector body, CS14G manual operating mechanism, andtransmission accessories, which can also be equipped with a CJ6 electric operating mechanism.This disconnector is a double-column, horizontally-actuated desian., Confiaured as unipolar, it features inter-pole connections viaconnecting rods when operating three poles simultaneously. Each unipolar segment comprises a base, post insulators, outletsockets, and contact heads, The two post insulators are mounted parallel and perpendicular to the base on the bearings at eachend. The main electrical components are mounted above the two pillar insulators, rotating approximately 90" along with theinsulators.

1. Altitude: 1000--3000m;
2. Ambient temperature: not greater than +40℃ and not lower than 30℃ (not lower than 40C in alpine region);
3. Wind pressure: not exceeding 700Pa (equivalent to wind speed 34m/s);
4. Seismic intensity: not greater than 8 degrees;
5. Icing thickness: not greater than 10mm;
6. Field for installation: free from combustible and explosion hazards, chemical corrosion and violent vibration;
7. Pollution level of column-type insulator: 0 for conventional type, Level Il for anti-pollution type.
The series of isolating switches meets all the requirements stipulated in GB1985-89 Alternating Current High-voltage Disconnectors, IEC129(1984) Alternating Current Disconnectors and Earthing Switches and IEC694(1980) High-voltage Switchgear and Controlgear Standards.

Item			Unit	Parameters
Rated voltage			kv	40.5	72.5	126
Rated insulation level	Power-frequency Withstand Voltage for 1 Minute	Over the ground	kV	95	140	230
		Fracture	kv	115	160	245
	Lightning impulse withstand voltage (peak)	Over the ground	kv	185	325	550
		Fracture	kv	215	375	630
Rated frequency			Hz	50
Rated current			A	400 630 1250 1600 2000 3150 4000
Rated short-time withstand current			kA	20 20 31.5 31.5 40 40 50 50
Rated peak withstand current			kA	40 50 63 80 100 100 125 125
Rated short circuit duration Master knife/ground knife			s	4/2
Rated terminal mechanical load	Horizontal longitudinal load		N	750	1000
	Horizontal transverse load		N	500	750
	Vertical Force		N	750	1000
Creepage distance			MM	1025-1250	1800-2250	3150-3900
Mechanical Life			Time	2000
Motor operating mechanism	Ungrounded			CS11(F)
	Single grounding			CS8-6D(F)
	Single grounding			Master knife CS14G(F); Ground knife CS11(F)
	Control circuit voltage		V	AC220, DC110, DC220
Motor operating mechanism	Model			CJ6
	Motor voltage		V	AC380
	Control circuit voltage		V	AC220, AC380, DC220
	Opening and closing time		S	6±1
Product weight	Not grounding		kg	360	500	700
	Single grounding		kg	410	600	800
	Double grounding		kg	460	700	900
