Lighting Distribution Box

Altitude: ≤2,000m;
Ambient air temperature does not exceed 40°c. Not less than - 25°C; The monthly average relative humidity should
not be larger than 40% at +20°C; A place free from violent vibration and shock;
There is no gas or conductive dust in the medium that can corrode metal and destroy insulation.

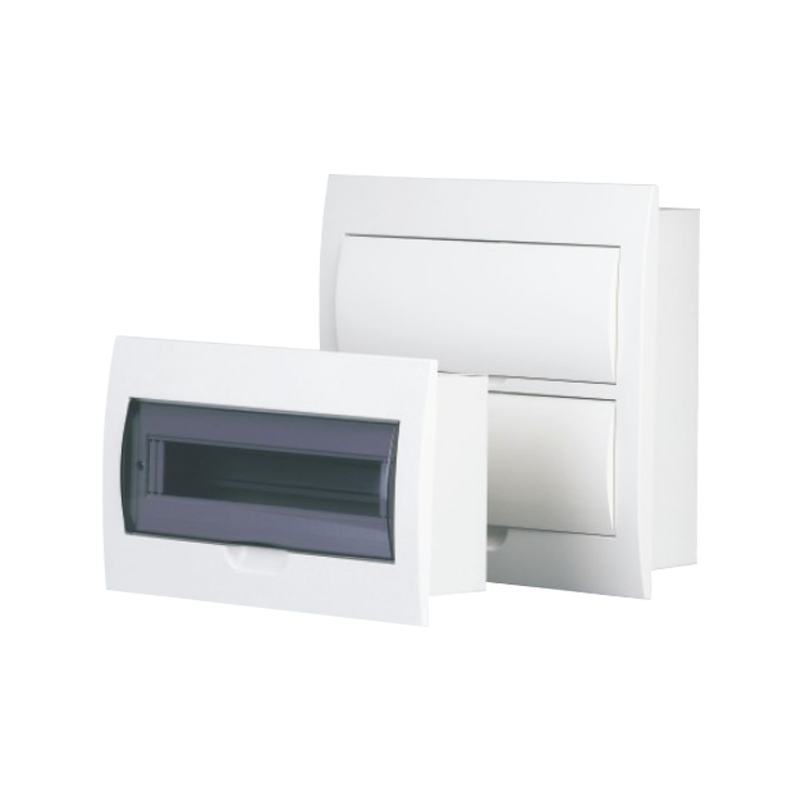

The PZ30 lighting distribution box is made of high-quality steel plate with a thickness of 1.Omm.
The shellis treatedwith high-voltageelectrostaticspraying.With plastic transparent surface cover,beautiful appearance and
generous shell both upper and lower sides are punched with knock holes,convenient for users to enter and exit the line.Factory
standard assembly system with horizontal block structure
Each box design novel and beautiful set standardized series in one.
Lighting box single-phase and three-phase can be universal; Monopole, multipole, and leakage can be combined
arbitrarily. Rated current < 100A, enclosure protection level reaches IP3X.
The ultra-thin structure is suitable for the dark installation of light structure walls and wall hanging installation.
Safe and reliable single-phase and three-phase comb shaped busbar connections,with busbar insulation protection sleeves for
higher safety performance and better thermal stability.
