Distribution Box

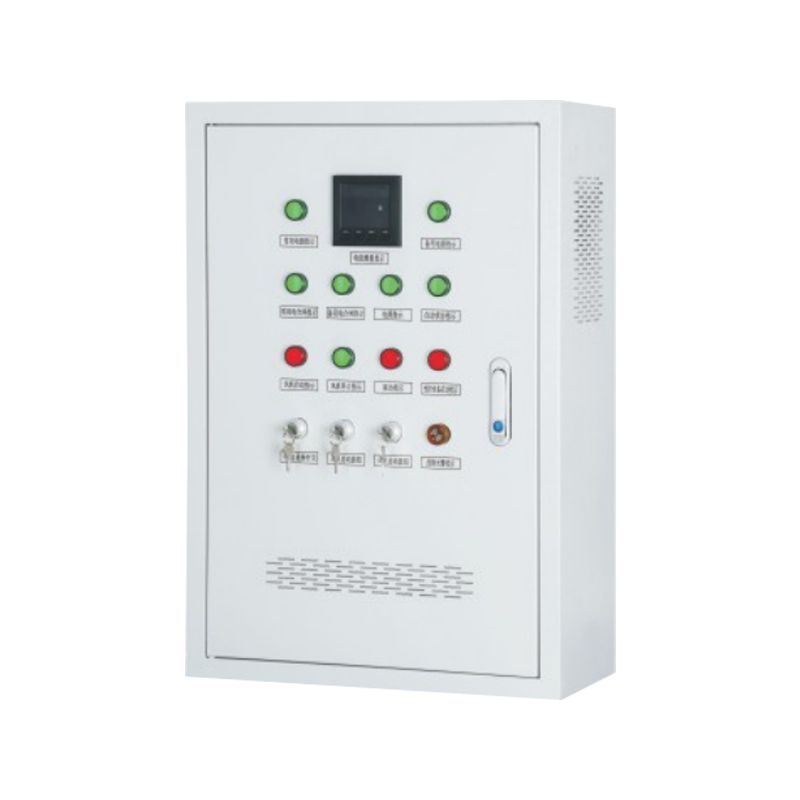

JXF distribution box is suitable for three-phase three wire, three-phase four wire, and three-phase five wire systems with 50Hz500V and below, and load current not exceeding 250A. lt is used for control, leakage protection, motor overload, short circuitphase loss protection, and various controls of the distribution system. This box has a reasonable design, small size, beautifulappearance, safe and reliable use, and is widely used in metallurgy, petrochemicals, medical and health, aviation, residential areasshopping malls,schools,and urban renovation.

Altitude: ≤2,000m; The ambient air temperature shall not exceed +40C, and not lower than -25'C; The monthly average relative humidity should not be larger than 40% at +20C; A place free from violent vibration and shock;
There is no gas or conductive dust in the medium that can corrode metal and destroy insulation.

Specification	Height H	Width W	Depth D	Sheet thickness	Remarks
2520/14	250	200	140	1.2	JXF is available in exposed installation and concealed installation.JFFisavaiable in metal door and perspective window door varieties. The door panels feature sealing rubber strips to prevent rainwater infitration.Theboxisequiped with upper and lower cable entry holes and a mounting base.The cable entry holes come pre-fitted with sealing plates,and the door can open to an angle exceeding 90. JXF and JFF1 each offer 25 specifications,while JFF2 has 18 specifications.
3025/14	300	250	140
3025/18	300	250	180
3030/14	300	300	140
3030/18	300	300	180
4030/14	400	300	140
4030/20	400	300	200
5040/14	500	400	140
5040/20	500	400	200
5040/23	500	400	230
6040/14	600	400	140	1.5	Specify when ordering: 1. Model; X 2.Installation method; 3. Structure type and dimensions; 4.System diagram and control schematic diagram; 5.Negotiation with special requirements
6040/20	600	400	200
6040/23	600	400	230
6050/14	600	500	140
6050/20	600	500	200
6050/23	600	500	230
7050/16	700	500	160
7050/20	700	500	200
7050/23	700	500	230
8060/20	800	600	200
8060/23	800	600	230
8060/25	800	600	250
10080/20	1000	800	200
10080/25	1000	800	250
10080/30	1000	800	300
