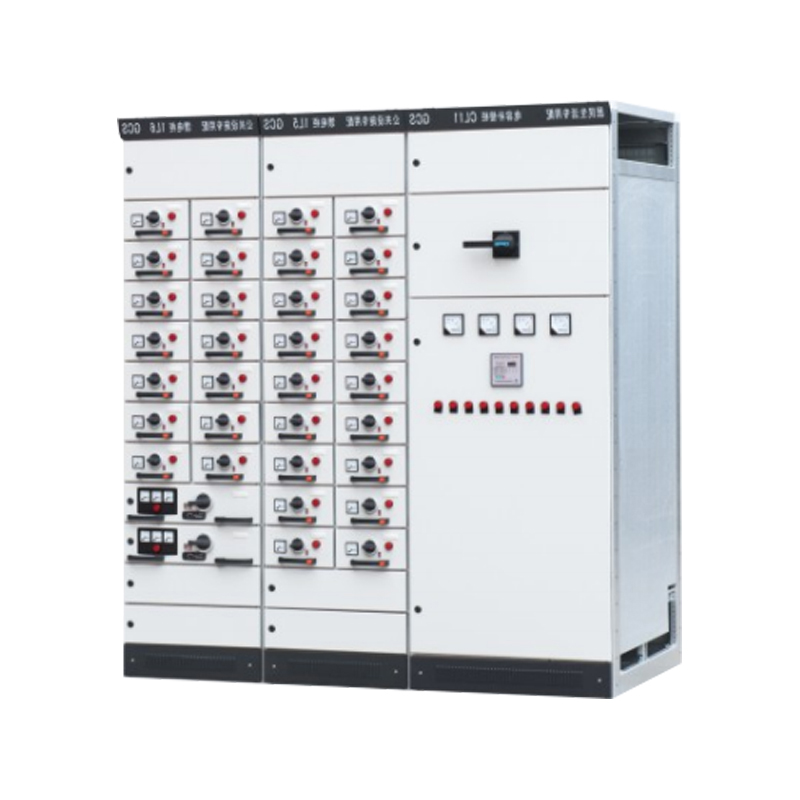

Low Voltage Withdrawable Switchgear

Ambient air temperature: -15°C to +40°c, the daily average temperature should not exceed +35°c.If exceeded, the capacity should be
derated based on actual conditions.
Altitude: Not exceeding 2500m.
Relative humidity: Not exceeding 50% at the highest temperature of +40°c. Allow higher relative humidity at lower temperatures,
such as 90% at +20°c. Consider the potential impact of temperature changes leading to condensation.
Installation tilt: Not exceeding 5 degrees, and the entire cabinet column should be relatively flat (compliant with GBJ232-82 standard).
The switchgear should be installed in places without severe vibration and shocks, and where electrical components are not
exposed to corrosive environments.Note: When users have special requirements, they can negotiate with the company for solutions.

The switchgear's main circuit has a total of 32 setsand 118 specifications (refer to Table 2).Thisincludes schemes and specifications
derived fromchanges in the auxiliarycircuit'scontrol andprotection.It caters to theneedsof powergeneration,supply,andother
power users,witharatedworkingcurrentof6300A.Itissuitablefordistributiontransformers of250okVandbelow.
Additionally,capacitorcompensationcabinetsaredesignedtomeetthedemandfor improvingpower factors inpowersupply and
usage.Reactor cabinets are designed considering comprehensive investment needs.
