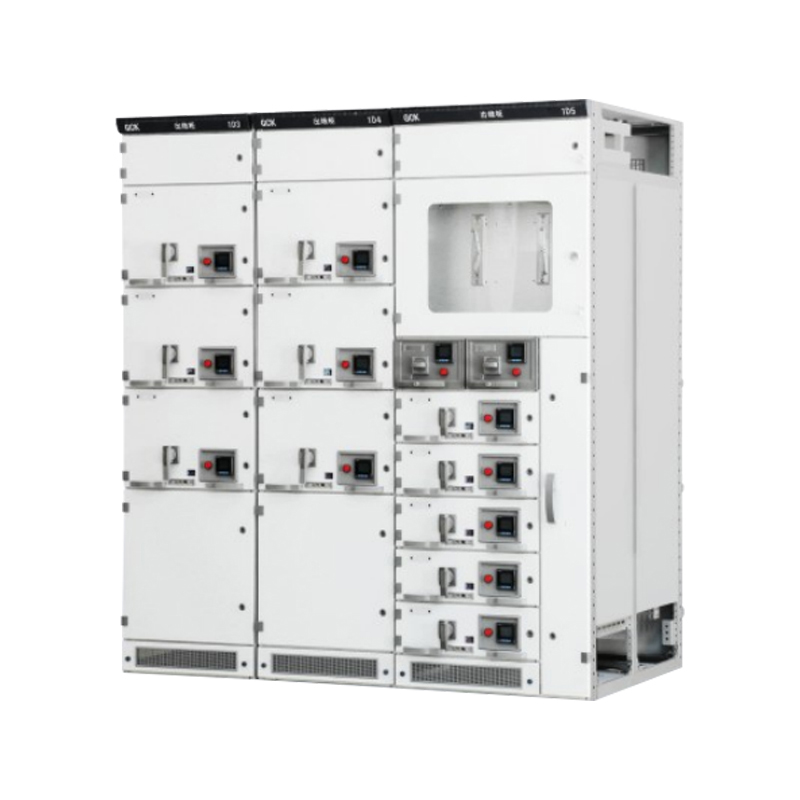

Low Voltage Withdrawable Switchgear

Altitude: 2500m and below.
Ambient Temperature: -15°C to +40°C, with a daily average temperature not exceeding +35C.
Relative Humidity: Not exceeding 50% at +40°C; at lower temperatures, higher relative humidity is allowed, and occasional condensation may occur, such as 90% at +20°C.
Suitable for locations without fire, explosion hazards, severe pollution, chemical corrosion, and intense vibration.
Inclination with a vertical surface should not exceed 5°.
Applicable for transportation and storage processes at temperatures ranging from -25°C to +55°C, with a short time (not exceeding 24 hours) not exceeding +70°C. If the above conditions cannot be met, the user should negotiate a solution with the company when placing an order.

Rated Insulation Voltage: 660V, 1000V.
Rated Operating Voltage: 380V, 660v.
Auxiliary Circuit Rated Voltage: AC 220V, 380V, DC 110V, 220V.
Rated Frequency: 50Hz (60) Hz.
Rated Current: Horizontal Busbar 6300A, Vertical Busbar 630A, 800A, 1200A.
Rated Short-time Withstand Current: 50, 80kA/1s; Neutral Busbar 30kA/1s.
Rated Peak Current: 105kA/0.1s, 50kA/0.1s.
Functional Unit (Drawer) Breaking Capacity: 50kA (rms).
Enclosure Protection Level: IP30, IP40.
Busbar Configuration: Three-phase four-wire, three-phase five-wire.
Operation Mode: Local, Remote, Automatic.
