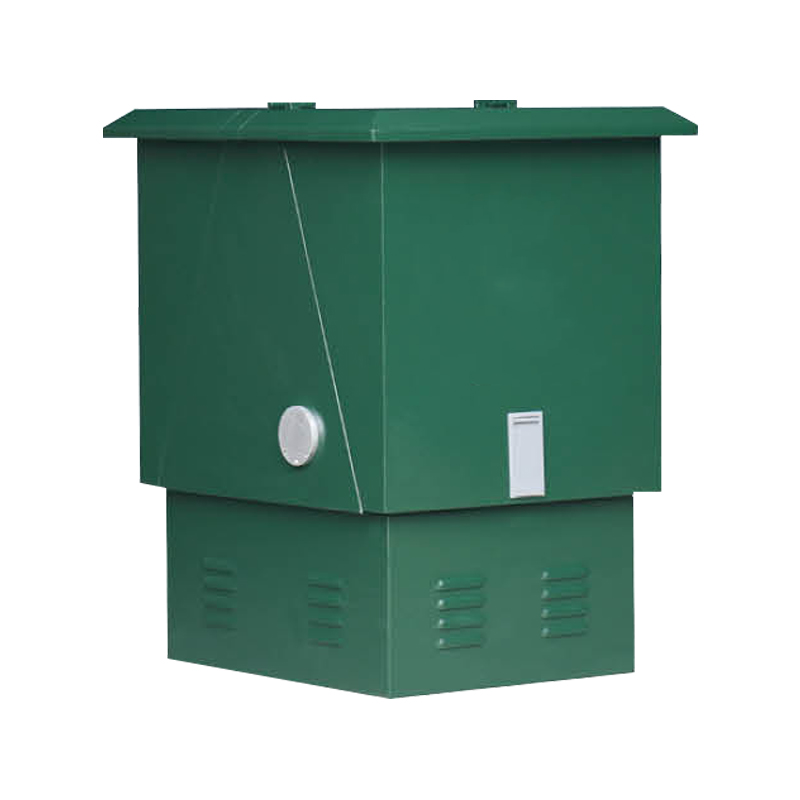

European Style Fully Insulated Ring Network Cable Branch Box: The Junction That Keeps the Ring Alive

A ring network feeds power in a loop. If one section fails, the power flows the other way around and the customers stay on. The European style fully insulated ring network cable branch box is the junction where the ring splits and the cables connect. It is fully insulated, sealed, and built for outdoor installation on the ring main. It is not a simple cable joint. It is the switch point that keeps the loop closed and the fault isolated.

The Ring Needs a Place to Branch

A ring main runs from the substation out to the load and back. The branch box sits along the ring and provides the connection points for the cables that feed the transformers and the customers. The box has to handle the incoming and the outgoing ring cables plus the branch cables, all in one enclosure.

The European style box uses a fully insulated busbar system inside. The busbars are encapsulated in epoxy or covered with a solid insulation layer. The cables connect to the bushings through separable connectors. The insulation is what lets the box be compact and still handle the voltage.

The Insulation Is the Whole Design

In a traditional air-insulated switchgear, the clearances are large and the box is big. The European style box replaces the air with solid insulation. The busbars are covered, the connections are shielded, and the live parts are not exposed to the air. The box is smaller, and it is safe to touch on the outside.

A fully insulated ring network cable branch box has to be sealed against the moisture. The solid insulation keeps the current in, but moisture on the surface can still track and flash over. The box is sealed with gaskets and the cable entries are sealed with the connectors. The factory tests the assembled box for partial discharge and insulation resistance.

The Switching Inside

The ring box is not just a junction. It has switches to open and close the ring sections. The switches let the operator isolate a faulted section without shutting down the whole ring. The switch is a three-position type: closed, open, and earthed. The earth position connects the cable to ground before the work starts.

The switch is operated from outside the box with a lever or a handle. The operator does not open the enclosure to switch. The position indicator shows the state of the switch. The interlock prevents the wrong operation.

Here is what the box has to get right:

• Fully insulated busbar system with solid insulation
• Sealed enclosure with gasketed cable entries
• Three-position switch with the earth position
• External operation with the position indicator
• Partial discharge tested at the factory
• Separable connectors matched to the cable type

Where the Box Sits on the Ring

Urban distribution uses the ring box on the underground ring main. The box sits in a pad or a kiosk on the street. The ring feeds the transformers along the street.

Industrial parks use the ring box to feed the buildings on the loop. The box sits at the branch point.

Renewable energy sites use the ring box to collect the power from the inverters and the transformers. The box is the junction between the generation and the grid.

The Box That Fails the Test

The partial discharge test fails because the insulation has a void or the seal let moisture in. The switch does not operate because the mechanism seized. The cable connector leaks because the interface was not matched. Each one traces back to the factory.

A European style fully insulated ring network cable branch box is the junction that keeps the ring alive. The insulation contains. The switch isolates. The seal protects.
