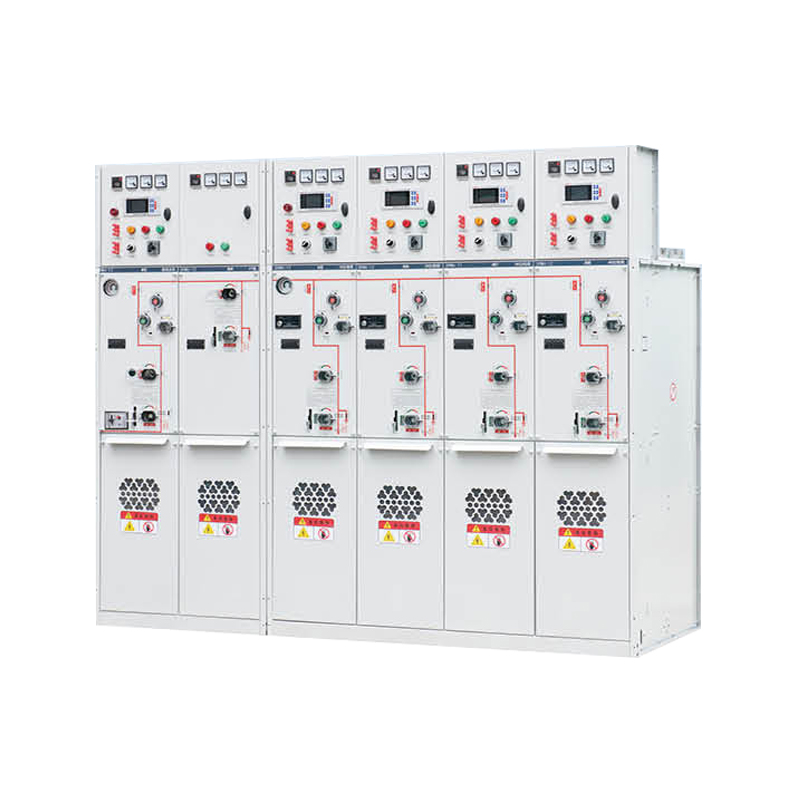

Insulated Gas-Filled Ring Main Switchgear: Compact Protection for Distribution Networks

The insulated gas-filled ring main switchgear has become a preferred switching and protection solution for medium-voltage distribution networks, particularly in urban underground systems, industrial facilities, and commercial buildings requiring reliable power distribution in confined spaces. This compact switchgear uses sulfur hexafluoride or alternative environmentally friendly gases as an insulating medium, allowing for significant size reduction compared to conventional air-insulated switchgear. Recent utility data indicates that gas-filled ring main units have gained widespread adoption due to their maintenance-free operation, enhanced safety features, and ability to withstand harsh environmental conditions.

Sealed Enclosure and Gas Insulation System

The insulated gas-filled ring main switchgear is housed in a sealed, corrosion-resistant enclosure made from stainless steel or aluminum, with all live components enclosed within a gas-tight chamber filled with an insulating gas. The gas provides outstanding dielectric strength, enabling the switchgear to be designed with smaller clearances and a significantly reduced footprint compared to air-insulated equivalents. The sealed construction protects internal components from dust, humidity, and contamination, ensuring reliable operation in underground vaults or coastal areas where corrosion is a concern.

The enclosure is constructed with welded seams and gasketed joints to prevent gas leakage, with the internal pressure monitored continuously by a density sensor. The gas-filling system includes a pressure gauge and filling valve for maintenance. The insulation gas is maintained at a specified pressure, with automatic alarms if the pressure drops below the safe operating level. The sealed design eliminates the need for regular cleaning of insulation surfaces and reduces the risk of insulation failure from environmental contamination.

Integrated Switching Functions

The ring main switchgear integrates multiple switching functions within a single compact unit, combining load-break switches, circuit breakers, fuse switches, and earthing switches. The load-break switch allows safe interruption of load currents up to the rated capacity, enabling circuit isolation for maintenance without interrupting the entire network. The circuit breaker provides protection against short-circuit currents, automatically tripping to isolate faults. The fuse switch combines load switching with fuse protection, offering a cost-effective solution for transformer protection. The switching functions include:

• Load-break switching for normal circuit isolation and connection;
• Short-circuit protection through integrated circuit breakers or fuse switches;
• Earthing switching for safe maintenance access;
• Motorized operation for remote and automated control.
• The switching mechanisms are designed for manual operation with clear visual indication of switch positions, and many models support motor operation for remote control and automation. Operating mechanisms are interlocked to prevent incorrect sequences.

Operational Positions and Mechanical Interlocks

The ring main switchgear provides three positions for the switching devices: closed, open, and earthed. The closed position connects the circuit, allowing current to flow. The open position disconnects the circuit, isolating the load. The earthed position grounds the circuit, ensuring safe working conditions for maintenance. The switch positions are clearly indicated, and the operating mechanisms are interlocked. The interlocking system prevents incorrect operations.

Application Areas and Selection Factors

The insulated gas-filled ring main switchgear serves various sectors including utility distribution networks, industrial facilities, commercial buildings, and renewable energy projects. In utility networks, the switchgear provides protection and switching for underground feeders. In industrial and commercial settings, it provides reliable power distribution. When selecting, buyers evaluate voltage rating and current capacity, gas type and environmental impact, enclosure type and degree of protection, and switching functions and control options. Buyers also consider compliance with relevant standards and the manufacturer's reputation for reliability and quality. Proper selection ensures reliable and efficient power distribution.
