Removable AC Metal-clad Switchgear

Altitude does not exceed 2500 meters The upper limit of ambient temperature is +40°C, and the lower limit is-10C The average relative humidity is not greater than 95% on a daily basis and not greater than 90% on a monthly basis The air should be free of conductive dust and gases that can corrode metal and damage insulation. There should be no fire, explosion to special requirements.
hazards, severe pollution, or intense vibration
Note: When the above environmental conditions are not met, it should be specified at the time of ordering and manufactured according to special requirements.

1. Main circuit scheme number, purpose, single-line system diagram, arrangement diagram, and layout diagram of the distribution room.
2. Auxiliary circuit wiring diagram, terminal arrangement diagram.
3. Models, specifications, and quantities of electrical components inside the switchgear.
4. Requirements for control, measurement, and protection functions of the switchgear, as well as other interlocking and automatic device requirements.
5. If busbar bridges are required between switchgear or incoming cabinets, provide specific requirements such as the rated current, span, height above ground, etc., of the busbar bridge.
6. When accessories or spare parts are needed, specify the type and quantity.
7. If the switchgear is used in special environmental conditions, provide detailed information when ordering.

The switchgear consists of a fixed cabinet and a removable part (referred to as a handcart). The outer shell of the switchgear and the partition of each functional unit are made of 2mm aluminum-zinc-plated aluminum sheets imported from abroad. The protection level of the switchgear outer shell is IP4X. The protection level when the circuit breaker room door is open is IP2X.

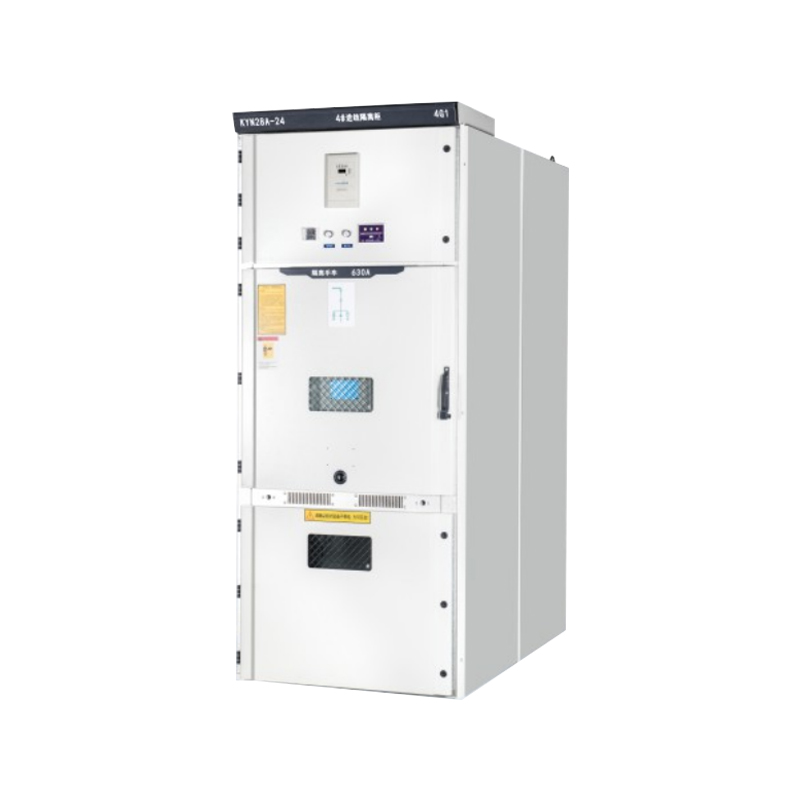

The KYN28A-24(Z) switchgear can be equipped with VD4-24, VS1-24, and other models of vacuum circuit breaker handcart. Theswitchgear can be installed as a double cabinet side by side, ie., installed as a back-to-back or face-to-face double-row arrangement. Since the installation and commissioning of the switchgear are carried out from the front, the switchgear can be installed close to the wall to save floor space and improve the installation flexibility.

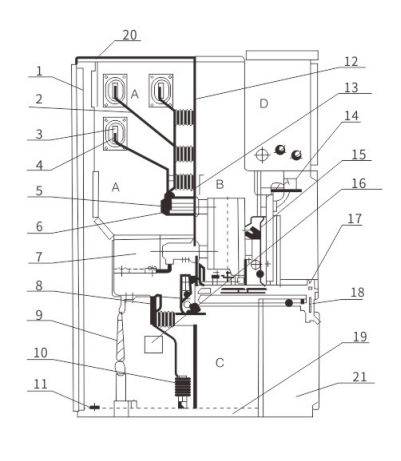

A. Bus room
B. Circuit breaker handcart chamber
C. Cable chamber
D. Relay control chamber
1. Housing
2. Branch busbar3. Busbar casing
4. Main busbar
5. Static contact
6. Static contact box
7. Current transformer
8. Grounding switch
9. Cable
10. Lightning arrester
11. Main grounding busbar
12. Loading and unloading partitions
13. Partition (valve)
14. Secondary plug
15. Breaker handcart
16. Heating device
17. Withdrawable horizontal partition
18. Grounding switch operating mechanism
19. Baseboard
20. Pressure relief device
21. Control conductor slot
